Mapping Where Ground Movement May Be Felt From Earthquakes
The expected ground motion from earthquakes is known as seismic hazard, and seismic hazard maps show the potential of ground motion due to earthquakes in a region. We generate two types of annual seismic hazard maps: a seismic hazard map showing the potential of ground shaking from earthquakes in the province in the previous year, and a forecast seismic hazard map showing the potential of ground shaking from earthquakes in the province for the upcoming year. We have annual seismic hazard maps for each year starting in 2011. Government and industry use these maps for evaluating the safety of life and property when conducting activities such as designing building codes or determining safety criteria for critical facilities.
More About Mapping Seismic Hazards
Seismic hazard maps illustrate the likelihood of an area to reach or exceed a certain level of ground motion caused by earthquakes over a set time period. We generate our seismic hazard maps retroactively on an annual basis using the Probabilistic Seismic Hazard Analysis. This analysis evaluates the magnitude and location of potential earthquakes, their frequency, and the properties of the rocks and sediments that earthquake waves travel through.
There are long-term and short-term seismic hazard maps. Commonly, seismologists design seismic hazard maps for long-term time frames (e.g., 50 years) since they assume the rate of naturally occurring earthquakes remains constant for long periods. However, if we incorporate induced seismicity, these long-term time frames are no longer helpful as induced seismicity is unlikely to remain constant, and relevant industrial activity inducing the seismicity likely lasts less than the long-term time frames. We generate short-term (i.e., 1 year) seismic hazard maps that include the hazard from induced seismicity sources in Alberta. Short-term retrospective seismic hazard maps provide a mechanism to quantify and report changes in the seismic hazard at a regional scale. Evaluating the seismic hazard at a regional scale is particularly important considering the amount of induced seismicity cases related to the energy sector in Alberta.
Our seismic hazard maps show the 1% chance that an area could have experienced a certain level of perceived shaking from ground motion due to earthquakes in a specific year. We express the ground motion values as peak ground accelerations (PGA), which is the maximum acceleration the ground reaches during an earthquake. The PGA values are given as a percentage of g, where g is the standard acceleration due to the Earth’s gravity (9.81 m/s2). We then associate these values with levels of perceived shaking in the area and display these areas on seismic hazard maps. The level of perceived shaking uses the following general terms identifying how people or structures in the area could feel the ground movement (based on the Modified Mercalli Intensity Scale):
- Not Felt - Not felt by people.
- Weak - Felt only by a few people, especially indoors. Some suspended objects may swing.
- Light - Felt by most people. Shaking is like a heavy truck passing near a building.
- Moderate - Felt by almost everyone. Unsteady objects might be overturned.
- Strong - Felt by everyone. Some people get frightened. Some heavy furniture might be moved.
- Very Strong - General alarm. Felt by people in driving cars. Negligible damage in buildings of good design and construction. Damage in poorly built structures.
- Severe - Fright is general. Heavy furniture overturned. People driving cars are disturbed. Slight damage in properly designed structures. Great damage in poorly built structures.
- Violent - Panic is general. Considerable damage in properly built structures. Partial collapse of buildings. Liquefaction occurs.
- Extreme - Objects are thrown upward into the air. Properly designed structures can collapse. Most masonry and frame structures are destroyed. In some cases, the damage is total.
Learn More About
Modified Mercalli Intensity Scale

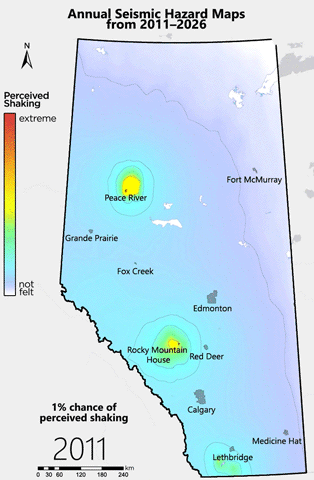

To show the evolution of the seismic hazard in Alberta, we generated seismic hazard maps for each year from 2011 to 2023. These maps characterize the changing earthquake patterns in Alberta. To generate these maps, we used our earthquake catalogue, which includes induced and natural seismic activity and excludes mining blasts.
The first known recorded case of induced seismicity related to hydraulic fracturing (i.e., injecting fluids to fracture rock) in Alberta occurred in 2011, the Cardston swarm in southwestern Alberta. Other occurrences of induced seismicity happened before 2011; however, seismic activity dropped off after the peak in the early 1980s (Rocky Mountain House, west-central Alberta) and the late 1990s and early 2000s (Cordel oil field, west-central Alberta). Between 2013 and 2015, induced seismic activity in the Fox Creek area (northwestern Alberta) posed the highest seismic hazard observed in Alberta at that time. In 2015, the Peak Ground Acceleration topped at around 45% of gravitational acceleration, based on a 1% chance of it happening in that one year. From 2016 to 2023, seismic hazard in Fox Creek decreased due to multiple factors, including regulatory measurements and active mitigation by the operators. As of 2023, seismic hazard in Alberta seems dominated by emerging cases of induced seismicity related to wastewater disposal, including the seismic cluster southeast of Peace River where an earthquake of magnitude (M) 5.59 was recorded in November 2022, and the seismicity near Musreau Lake (northwestern Alberta).
Learn More About
Alberta’s Earthquake Catalogue and Dashboard
Induced and Natural Seismicity
Natural Earthquakes
To create a forecast seismic hazard map for a specific year, we rely on data from the previous year. For instance, we used data from 2023 to forecast the seismic hazard for 2024. The forecast seismic hazard map for 2024 seems dominated by seismic sources southeast of Peace River (northwestern Alberta), near Musreau Lake (northwestern Alberta), and southwest of Rocky Mountain House (west-central Alberta). For the cluster observed southeast of Peace River in 2023, the expected seismic hazard for 2024 remains high, with a 1% chance to reach Peak Ground Acceleration topped at around 100% of gravitational acceleration. This forecast is limited to short-term hazard predictions because we assumed a constant rate of earthquakes for induced seismicity. For that reason and considering the rapid change in the seismicity patterns of induced seismic sources, this forecast is a reference point, a baseline of expected seismic hazard, not a conclusive seismic hazard model for 2024.
